The Heavy-Lift Multi-mission Hybrid Multi-copter (HMHM) is a medium-lift long-endurance remotely piloted fly-by-wire vertical takeoff and landing (VTOL) aircraft that will provide the cargo delivery that the USAF, US Army, USN, and USMC, USSOCOM need immediately to counter the current shortage of helicopters and aircrews.
HEAVY-LIFT MULTI-MISSION HYBRID MULTI-COPTER
DIMENSIONS
- FULLY DEPLOYED DIMENSIONS: 17.85 x 17.33 x 7.5 ft.
- STOWAGE DIMENSIONS: 9.5 x 3.7 x 5.42 ft. (height will be lowered to 5 ft.)
- FUSELAGE DIMENSIONS: 9 x 3 x 4.5 ft.
- INTERNAL CARGO: 35 cu. ft.
SPECIFICATIONS & FEATURES
- 4 Rotor X Aircraft rotor systems
- 1 gas (or heavy fuel) Rotor X Aircraft Turbo Charged Engine
- MAX FLIGHT TIME: 12+ hr.
- CARGO PAYLOAD: 350 kg.
- MAX RANGE: 1600 km.
- AIRSPEED: 115 knots cruise, 130 knots max
- MAX HEIGHT: 7,000 meters
- HOVER CEILING: 6,000 meters
- LANDING FOOTPRINT: 7.5 x 7.5 meters (no runway required)
- CONDITIONS: 20 knot wind, moderate rain, light snow

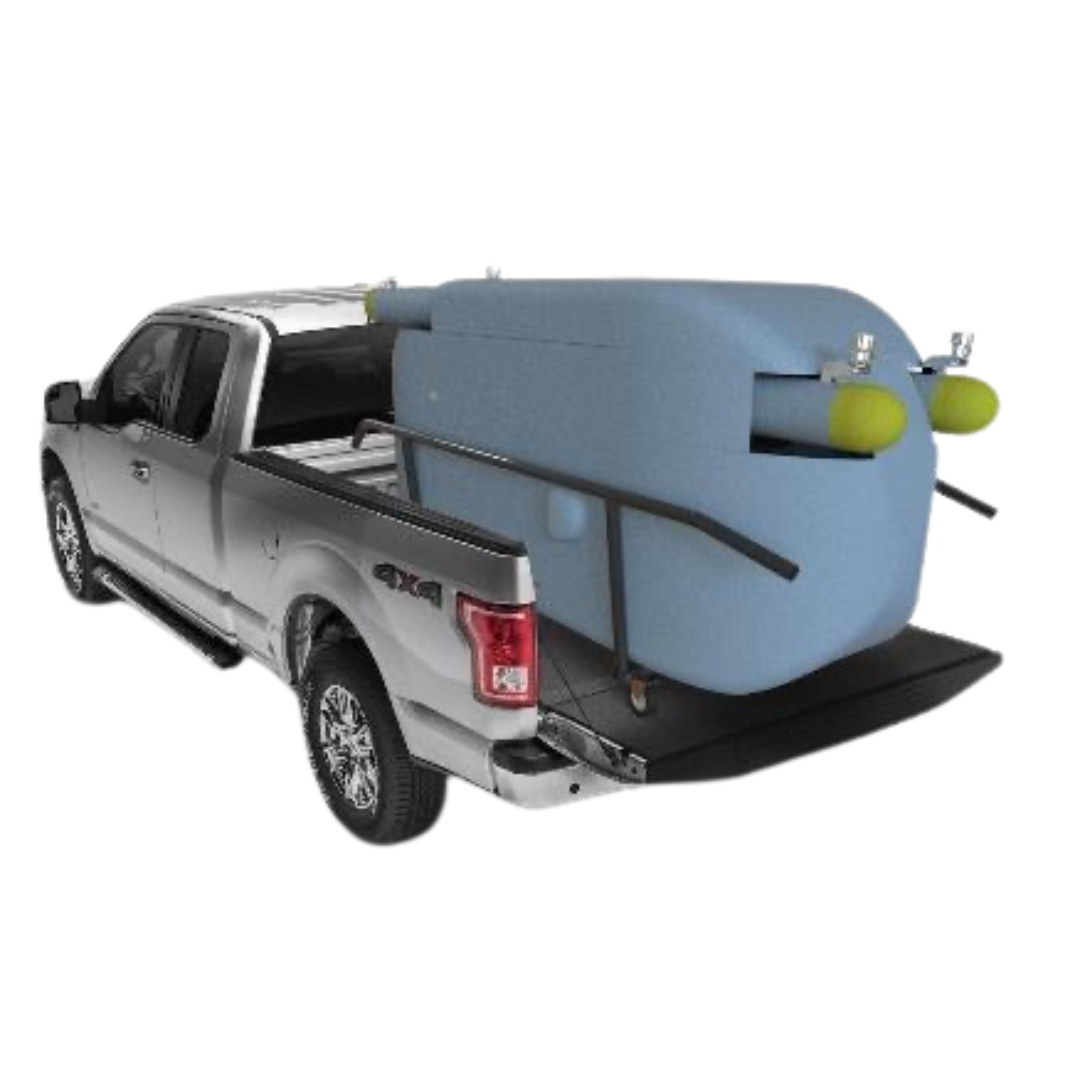

Built For Easy Transport
Carries Casualty on Litter in Lower Interior
